US Motors Hostile Duty TEFC, 10 HP, 3-Phase, 1800 RPM Motor, HD10P2E

The World Motor HOSTILE DUTY™, INVERTER DUTY™ line from U.S. MOTORS® features rugged, cast iron TEFC motors designed for variable frequency drive (VFD) applications. Built with patented Inverter Grade® insulation and equipped with Aegis® shaft grounding rings and thermal overload protection, these motors exceed NEMA MG-1 standards and come with a 36-month warranty from installation.

Model Number: JF32

Catalog Number: HD10P2E

Horsepower: 10

Pole(s): 04

Voltage(s): 460-230 / 400-200

Frame Size: 215T

Shaft U Diameter: 1.375

Outlet Box AA: 1.00

Request A Quote

Call For Pricing 856-627-3535

Download Product PDF

Features & Specs

Horsepower 00010.00 ~ KW: 7.46
Enclosure TEFC
Poles 04 ~ RPM: 1800
Frame Size 215~T
Phase/Frequency/Voltage 3~060~230/460
Winding Type Random Wound
Service Factor 1.25
Insulation Class Class 'F' ~ Insulife 1000
Altitude In Feet (Max) 3300 Ft.(1000 M)
Ambient In Degree C (Max) +40 C
Assembly Position 'F-1' Assembly Position
Efficiency Class Premium Efficiency
Application Unknown
Customer Part Number Unknown
10 Horsepower 50 Hertz ~ 200/400 Volts
'AK' Dimension (Inches) NA
Temperature Rise (Sine Wave) 'B' Rise @ 1.0 SF (Resist)
Starting Method Direct-On-Line Start
Duty Cycle Continuous Duty
Efficiency Value 91.7 % ~ Typical
Load Inertia NEMA ~ Standard Inertia: 51 LB-FT2
Number Of Starts Per Hour NEMA
Motor Type Code CTE
Rotor Inertia (LB-FT²) .967 LB-FT²
Qty. of Bearings PE (Shaft) 1
Qty. of Bearings SE (OPP) 1
Bearing Number PE (Shaft) 6208-2Z-J/C3
Bearing Number SE (OPP) 6206-2Z-J/C3

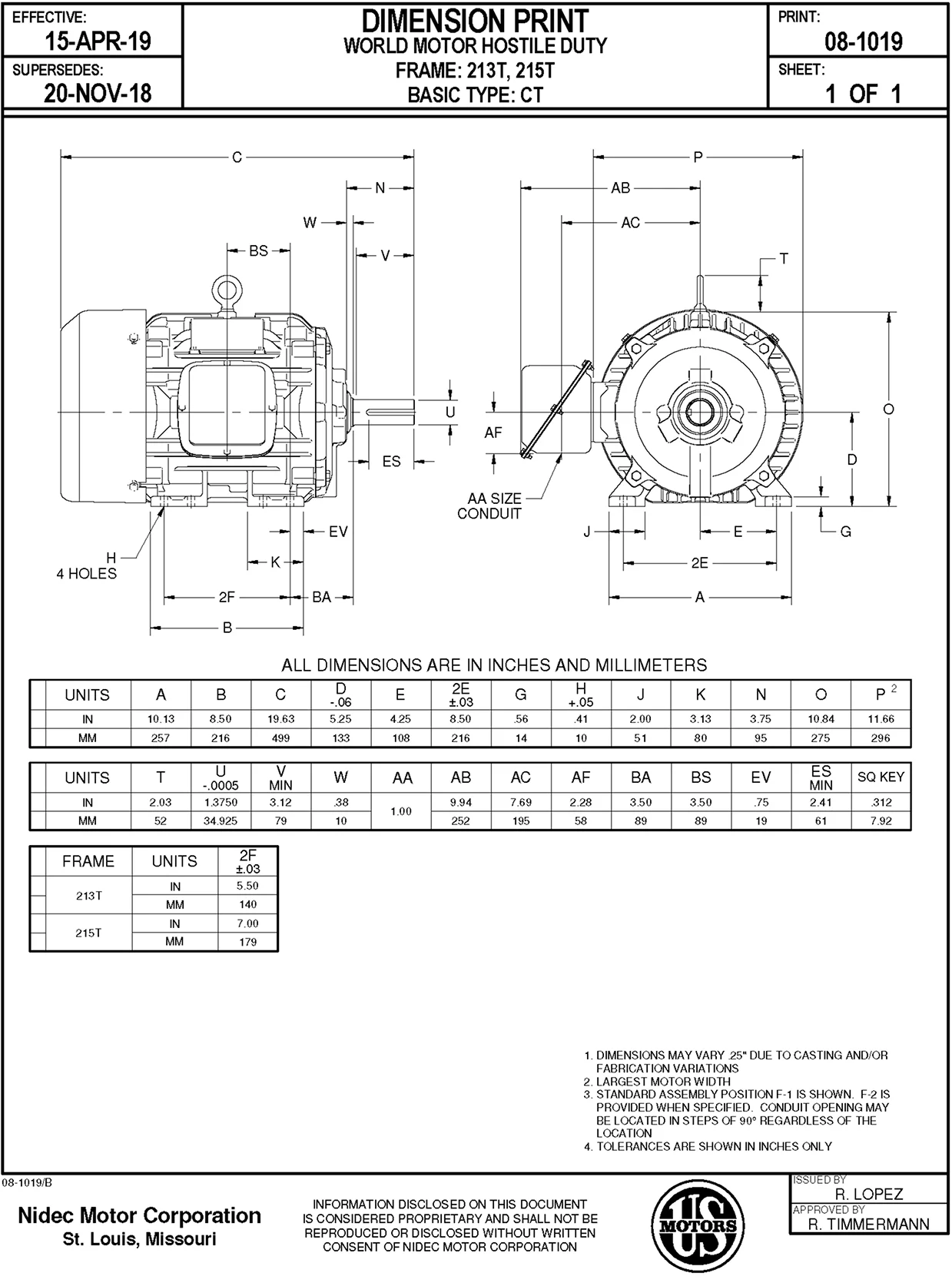

Technical drawing for US Motors Hostile Duty TEFC, 10 HP, 3-Phase, 1800 RPM Motor, HD10P2E

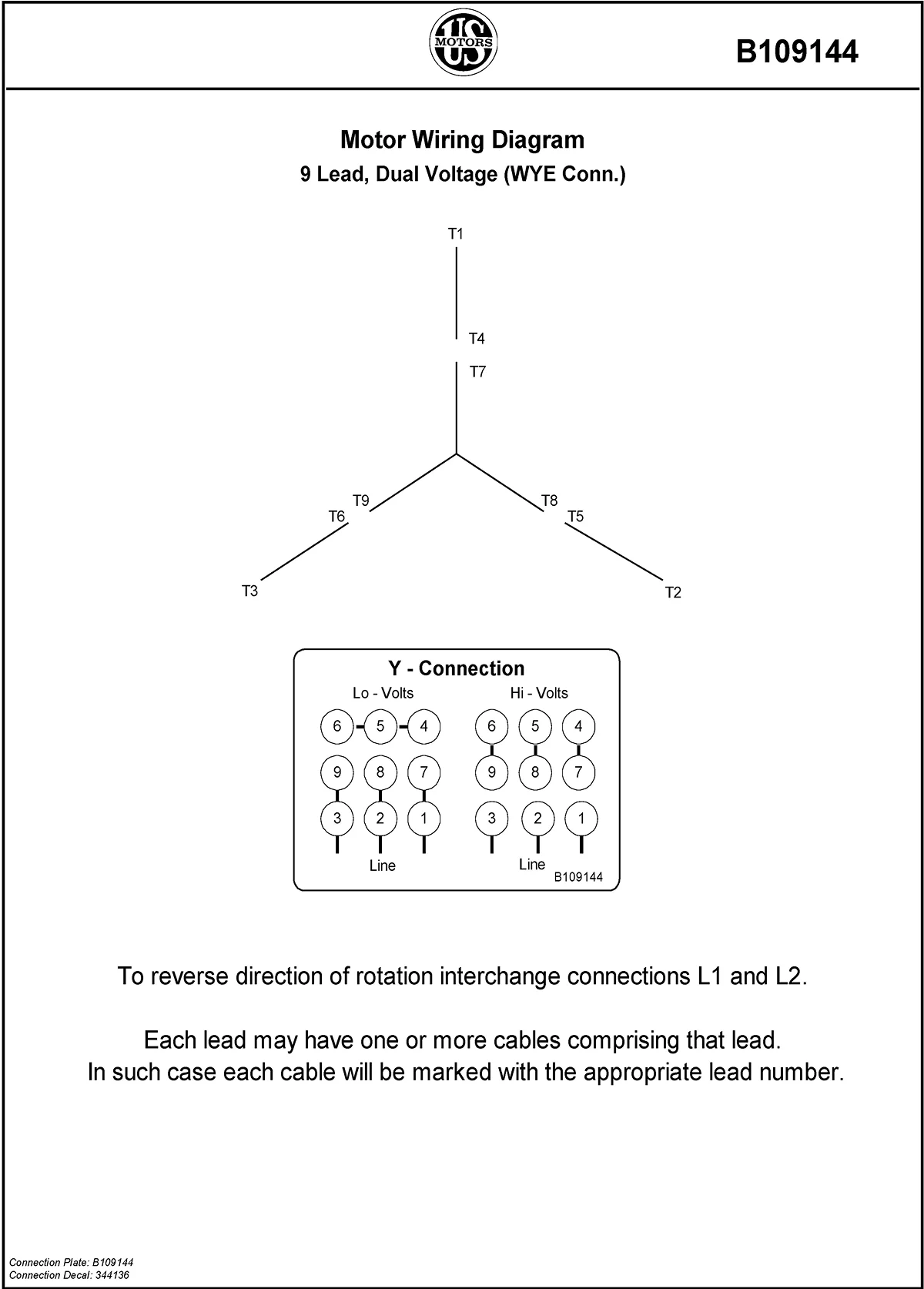

Motor wiring diagram for US Motors Hostile Duty TEFC, 10 HP, 3-Phase, 1800 RPM Motor, HD10P2E
